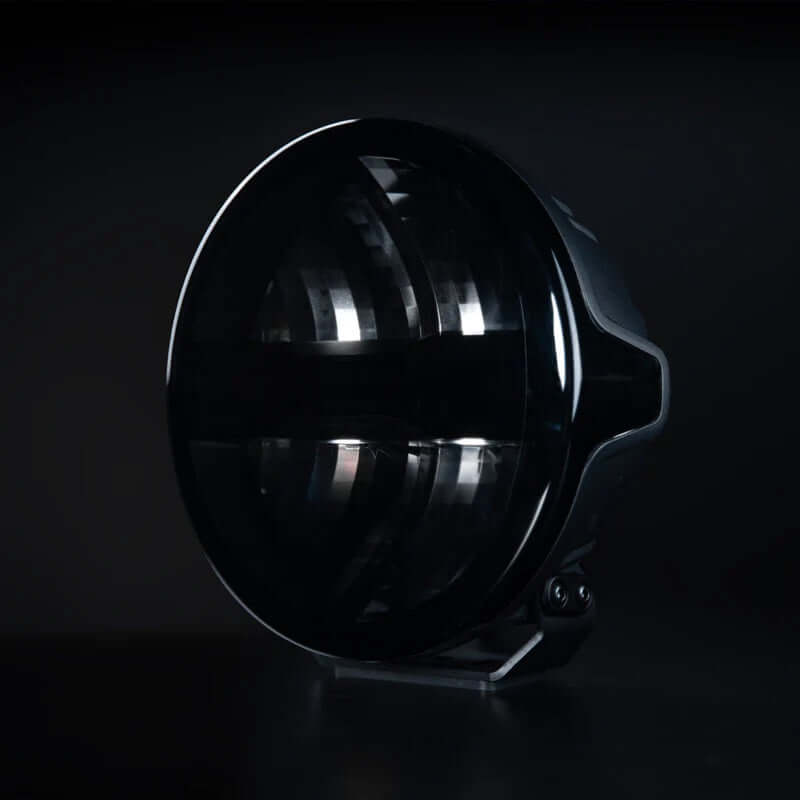

Strand’s FOR9T DRAGON DRIVE 9″ DRIVING LIGHT

Strands' Dragon Drive driving light not only looks great, but it's also a real powerhouse. The extended beam has 9300 lumens , 6500 Kelvin , and a range of 586 m at 1 lux . The Dragon Drive is easy to install thanks to a 150 mm cable with a DT-4 connector . Featuring high-quality aluminum and polycarbonate and an IP67 rating, you can be sure you're choosing a durable and robust addition to your vehicle.

Technical data:

• Lamp type : LED
• PCS LEDs : 4
• Voltage (V DC) : 10-48V DC
• Consumption (w) 12V : 141
• Consumption (w) 24V : 142
• Actual lumens : 9300
• 1 LUX @ m : 586
• Kelvin : 6500
• IP class : IP67
• Case color : Black
• Lens color : Clear/dark
• Color LEDs : White and Amber
• Beam pattern : Extended beam

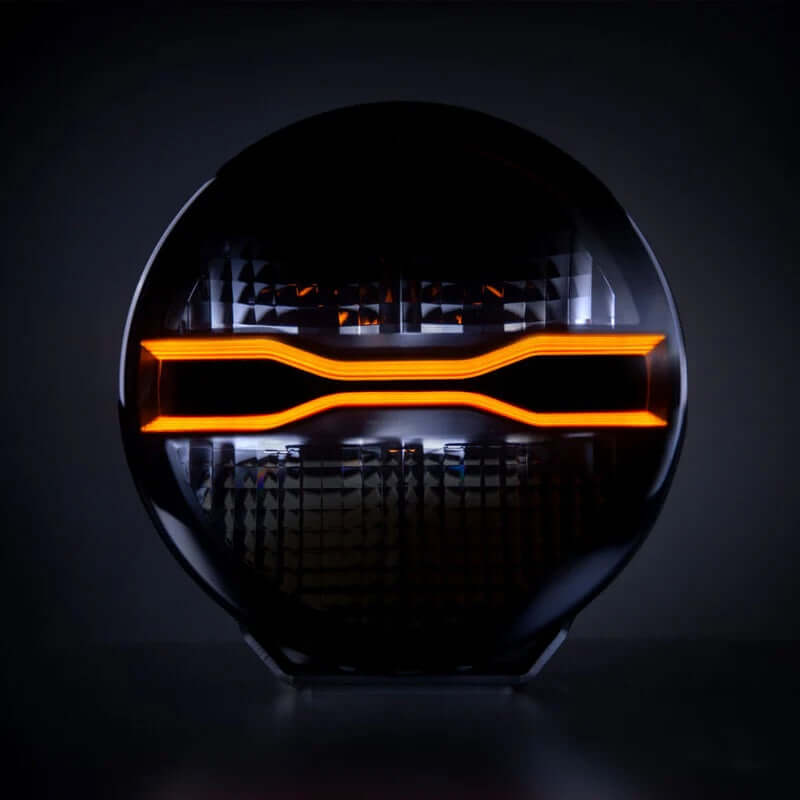

• Position light : amber and white
• Connection : DT4
• Cable length (mm) : 150
• Bracket material : stainless steel
• Housing/Chassis Material : Aluminum
• Lens material : polycarbonate
• Depth (mm) : 90
• Height including bracket (mm) : 226
• Diameter (mm) : 220
• Operating temperature : -40 - +65°C
• ADR approved : No
• E-approved : No
• EMC : ECE R10

Installation instructions:

• Black cable: - Negative
• Red cable: + high beam
• White cable: + White position light (positive)
• Yellow cable: + Yellow position light (positive)


Scope of delivery:

• 1 x headlight
• Mounting material (bracket, screws, washers & bolts)
